Foreword
It is still quite exciting to receive the SMZDM's public beta notice, but the pressure after getting the product is also quite large. First of all, this type of product itself is more complex, and the workload of evaluation is large. The most recent tests are all irresponsible. The products are omnipresent, and the landlord is under great pressure.
But then, since Xiao Bian selected the landlord to evaluate, the landlord wrote according to his own rhythm.
table of Contents
1. Regular out of the box
2. Product photo, experience, introduction, and comparison with the first generation iPad Pro will intersperse
3. Screen, stylus test and office experience, contrasted with first-generation iPad Pro
4. General hardware test
5. Summary (too long to read the article directly)
Reading Guide: Pay attention to bold content
Casino~
A few fresh photos first shocked the lengthy building
Yes, the later comparisons will be between the Elite x2 and the first iPad Pro. Of course, the landlord knows that they are not the same positioning products, but the product owner who can compare with Elite x2 on hand has only this one.
Start of text
Prior to the production of this Elite x2 Tablet PC, HP produced the classic TC1100 laptop (see the movie "The World No Thieves" implant) and has always had a small size portable product line with a stylus pen, HP does this The genus of products is very deep, like Thinkpad's XT series..blablablabla......
Hahahahahahahahahahahahahadhahahahadhahahahahadhahahahahahadhahahahahahahaha1hahahahahahahahahadhad sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss|
1. Regular out of the box
After knowing that the test was chosen, the landlord took the cold kiln for eighteen years and finally waited for SMZDM's express delivery.
open
Packaging is conventional
Basically is such a bunch, left - manual, CD, middle - host, keyboard & stylus, right - power adapter
The packaging of the mainframe is still different. The flat body and the keyboard are assembled together with cushioning foam.
According to this number of photos, the landlord may not really have the next test, and quickly go to the table
This makes it easier to distinguish, the lower right part is the two fixed stylus accessories.
2. Product photographing, experience, introduction, and comparison with the first generation iPad Pro will intersperse
Ontology appearance ~
The main hardware configuration of this evaluation model: Intel m7 processor, 1920 × 1280 resolution screen, 8G memory, 200G hard drive.
The most obvious frontal is of course the Core m7 sticker (although the landlord does not care whether the m7 is stronger or weaker than the mobile i7, but still a little curious about how many points a processor can run with only a few W).
Left: Power button, volume & key, sim card slot (4G network module without measurement, booths), keyhole (True Business)
Right: Do you see the lightning symbol? Hahaha is a Type-C lightning interface . The small hole on the left side of the Type-C connector is the charge indicator. When the landlord has not booted, it is presumptuous that this interface may not be a pure USB3.1, because the camera body did not find any other video output interface besides this interface. The following figure is the system information after booting.
Capital THUNDETBOILT ah, if you want, external video card is also possible
The right side is SD (TF) card reader, USB3.0 interface, 3.5mm headset interface. Landlord is not very understanding of the reasons for the existence of this TF card reader, if it is to digital products to read and write data, the standard SD card interface compatibility will be better, if it is used to expand the hard disk space, first of all is not enough speed, followed It's just like buying a high pair ; the headset jack is compatible with the iPhone's headset but is not compatible with its microphone, because no one around the Android phone has tested the Android phone's headset is
See B&O's logo in the top left corner of the screen, so that the owner of B&O can not afford to buy a heart of the landlord
The corresponding speaker opening is at the top and there is a microphone opening
Zoom in to enlarge
The opening is fairly fine, and with B&O's logo blessing, there should be very good sound performance. As a result, the landlord turned on the playback software and clicked the play button. This machine burst into a tone, and then it was silent. . . . . Only after a certain restart did a sound come out and the sound was subtle . The word “subtle†was not wrong, and it was not as loud as the loudness of the iPhone 6s. The sound behind the use seems to have become a bit bigger, but there is still no iPhone, sound quality is not good for the iPhone, adjust the pre-installed B & O tuning software also does not improve the use of headphones, the sound quality is not good. The landlord suspects that it is the driver or the firmware. Try to update the driver or firmware. No updates are found in HP's software.
If it is an individual quality problem, explain the quality control of this product. . . If it is not a question of quality control, explain the quality of this product. . . If neither of the preceding is, explain the character of the landlord. . .
The back is very simple, shell aluminum alloy CNC process, external surface sandblasting + aluminum primary oxidation, good texture .
The back can see the bracket, camera and fingerprint reader
The black glass embedded on the top is much better than the aluminum alloy clamps of the Surface and iPad series.
Camera and flash in the middle of the glass, but the landlord in the use of QQ video, the default is to enable the front camera, switch to the rear camera when the QQ software crashes, the landlord experimented 5 times, the next crash, do not know this pot should Who is back Â
Can see that the details are very delicate
Here is the lanyard hole, behind which you can see the accessories that can be used together
At the same time, is this structure a bit familiar? Yes, it is the structure between metal and plastic commonly used in mobile phones (it sounds quite common, but there are really not many notebooks in this form of structure).
By the way, show the posture when reading fingerprints
The opening and closing of the bracket is steplessly adjusted, the damping is moderate, and the angle in the figure below has a clear limit on the hand feeling.
At the same time, compared with the Surface or iPad Pro , the stand must be light and sexy. This is to be commended . Although the figure is indecent, it can be seen clearly.
This is the largest angle
Conventional perspective
The keyboard has three levels of backlight adjustable - off, bright, highlight, softness of the keycap is softer than the Macbook Pro, the key process is similar to it, so the handle is similar to the two, much stronger than the iPad Pro keyboard, by the way , it is more powerful than New MacBook.
The keyboard has 6 long strips of rubber mats on this side. The sense of presence is not very strong. It is also for the keyboard to fit behind the screen to leave gaps and protect both.
The touchpad is glassy and feels good. The structure is the same as that of the old Mackbook Pro (similar to the lever at the upper end of the shaft). The lower part is more convenient to press. The upper part of the press is not very comfortable, but Windows Most people use this touchpad to touch clicks, so the negative impact
Magnetic keyboard is convenient to use at a certain angle is also standard for this type of product
The back of the keyboard is a fabric wrap
The texture of the fabric is slightly rougher (neutral word), which means that it is easier to get rid of dust than fine textured fabrics. The landlord does not like it.
Limit clamps and contacts for connecting the tablet body
Fit
Change the angle
This is a stylus and accessories that claim to have wacom technology and 2048 pressure
The right column, from top to bottom, is a fixed rope (with a pen and tablet, anti-lost), a pen tip, a spare tip, and an AAAA battery.
This type of tablet stylus can press the cap to start Notebook should also be standard
According to the instructions guide to prepare to insert the battery, hey, there is a piece of paper!
In addition to the original AAAA battery on the pen, there is a button battery on the pen cap. The method of button battery replacement is printed on the paper.
After removing the spring on the cap to connect the negative pole of the 4A battery, you can see a cross screw
After unscrew it is like this... To be honest, it's complicated, I hope it doesn't need to change often
Well, put it back
This is a power adapter. See the Windows 10 Professional logo above?
Professional version of Win10, Type-C charging port, haha, this wave earned
However, this type of power supply has the form of cables at both ends to make it difficult to receive, especially for users who are accustomed to the Macbook.
Unboxing on the hardware basically ends.
This pile is "tossed"
Wait, don't really throw it, let the landlord introduce
The two pieces of paper in the upper left corner are this
Students who have used HP's commercial products should know that HP's after-sales service is not bad, and hope that HP can continue to maintain on the tablet (in the end can not be maintained, the landlord does not know). This is entirely due to Microsoft's Surface's "not to worry about" after sales, hoping not to spread in other brands.
The top three corners are more important for users who have not used the X86 Windows Tablet.
These three are quick start guides for the whole machine, stylus, and keyboard
This is a one-year free Wi-Fi service activation code that HP has prepared for business elites. The landlord is not an elite.
3. Screen, stylus test and office experience
The first boot process is not much different from an ordinary PC. There are two more steps. One is to adapt the stylus and follow instructions.
The second is to set up a fingerprint. The landlord is not familiar with this type of swipe-scanning fingerprint. After many attempts, the system has been skipped by this system and later set up in the HP management software. In the later use, it is still convenient, although it is faster than the recognition speed of the iPhone 6s, but it is more convenient than entering the password.
HP pre-installed supporting software, product registration, maintenance, warranty, software upgrades and some strategic settings can be completed here, there are Chrome and IE browser plug-in with, it is also convenient to use. HP's other products can also be added here, such as printers, etc.
Its fixed icon at the bottom of the bar is this ------- a question mark! The tendency to bully patients with obsessive-compulsive disorder
After the pre-installed software is roughly finished, the landlord goes in the screen test. This is one of the two items that the landlord is most concerned about. The other is the stylus experience. First measure the resolution, the following figure is a comparison with a dollar coin (the landlord does not have a professional equipment on hand to use the millet plus rifle method), icons and text size is inconsistent, see the transition of the icon/font edge is like (on the Elite x2, Under iPad Pro)
1920 × 1280 pixels resolution than the iPad Pro, dot pitch bigger than the iPad.
Light leakage test
On the other hand, we compared the initial screen shots of Elite x2 and iPad Pro. The camera has a fixed color temperature of 5500K.
The brightness of the two flat panels is 80% (Elite x2 accurate control, iPad Pro moving slider), shooting environment without lights in the room, light leakage comparison under pure black pictures (35mm F2.8 1/4 second). Left Elite x2, right iPad Pro (all below)
It can be seen that the Elite x2 light leakage control and brightness uniformity on the iPad Pro are significantly better than the Elite x2
Color contrast
The original picture is like this
Because both the camera and the lens are subject to color shifting, so when the landlord does not have a color correction instrument, the first subjective feeling is better. The above figure shows that the Elite x2 screen is slightly greener than the iPad Pro. More, the actual situation is not so exaggerated in the photos, but it can be seen at a glance.
Original image
Screen image
The above figure shows the obvious difference between the two colors: the floor on the bridge, Elite x2 is green, iPad warm (close to the original); the color of the sky iPad is closer to the original. PS. The screen is greenish and can be solved with a color correction meter, but people who use this product are not expected to go to school. At the time of the landlord's press release, he saw another test person @Heagle bought the red spider
Viewing angle
The icon on the screen is Elite x2
The viewing angle is also iPad Pro dominant, Elite x2 left and right viewing angle is narrow, the upper and lower viewing angle is relatively larger
About stylus (Look at the text, don't care about the picture)
The landlord does not want to check the principle difference between the two pens, directly to experience
After the landlord to use, Elite x2 2048 comes with pressure sensitive pen, iPad Pro is the first generation of Apple pencil with respect, and not feel a sense of pressure on what is a big difference (the reverse is also the same), and The biggest difference is that the Windows 10 system in the touch screen state divides the touch operation and the operation logic of the stylus into distinct layers. When drawing, only the freehand pen can leave a stylus on the drawing board. Although the iPad has been optimized, it still cannot Good to distinguish between strokes or finger touches (but the impact on use is not great). Here are the colleagues who had just used Procreate when they first started iPad Pro. They can see a lot of noise left by the strokes (the big picture is more obvious, but it also has a certain relationship with personal drawing habits).
This time the Elite x2 drawing asked another colleague who hadn't contacted the Windows tablet before to take a photo session with Photoshop during the lunch break. Because my colleagues were very busy and didn't have time to finish the painting completely (as the landlord did not paint, because the landlord Wild designers do not paint humans and animals, they only paint industrial products, and they fear that you are not interested in painting. Software, brushes are not the same, hand-painted maps can not represent the functional level of the two machines , the main experience also see the text of the landlord
When Elite x2 uses One note, Sketchbook Pro uses a hand-painted pen, it will not notice the delay. In Photoshop (simple brush), there is a slight delay. When the landlord feels a little wrong, he takes a photo with the high-speed camera. The strokes are actually half a beat slower than the previous two software (this value is really not accurate and accurate), but it still belongs to the high availability range. In contrast, the iPad Pro has no detectable delay in its own memos and Sketchbook, Procreate and other software, but there is no giant software such as PC-side Photoshop on the iPad Pro.
Do not mention the sense of pressure for the landlord, because the stylus pressure rating of the two machines are very good, not a bottleneck when used
In general, 2D drawing work (not processing pictures), iPad Pro can do a good hand-painted effect, the software experience is also very good, but the data import and export and post-processing still need to rely on the PC to complete; Elite x2 in There is no iPad in the process of drawing. The main reason is that the screen temperature is slightly higher and the screen color is not accurate, but it can complete the entire process.
Office experience
Office experience, send and receive simple mail or something, the phone can do it, but once the mail has a compressed package like the need to open the second thing, iPad will be more Wohuo
Landing the company's web-based office system, this can be done, but once the software-side system, but also relatively old, it is estimated that only the Windows platform can support.
The landlord's most used office software is PPT, use iPad to do PPT ... or don't do it, find a crime.
All of the above problems do not exist on the Elite x2, because - it is a computer
4. Conventional hardware testing (The most boring part is actually the landlord himself wants to see the power of this U.)
First, install the AIDA64 test. At this time, the CPU is fully loaded, and the temperature is quickly overheated. But you should not care about it. During the test, the machine has not been automatically shut down or restarted. At the beginning of the full load, the CPU 2.23GHz Turbo frequency, after a few seconds will be pulled down to 2.15GHz (but the highest Coreband R15 test time is longer), the landlord has the same screenshots and task manager, but sent up If this is the case, the map will not be able to see everyone's information. This is the resolution of the landlord's Nth Tucao SMZDM (now seems to have improved)
This is a hard disk. Insert one sentence, when CZ80 inserts on Elite x2 USB mouth, the big file reads speed is 220MB/s
This is chess
This is CPU-Z
The above tests were all measured with the adapter powered. In terms of CPU power/power consumption, this value is higher than all X86 processors. However, everyone knows that this processor is not a heavy worker. Its processing power is not strong, but the single-digit power consumption wattage, Wenneng PS Wuneng PPT's tablet computer also picks up a bicycle

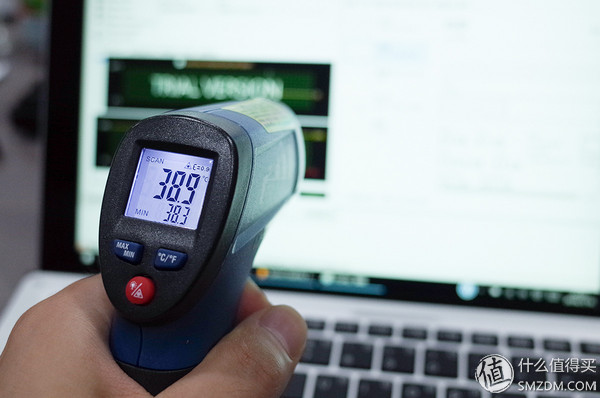

The figure below shows the temperature measured by the landlord during the baking machine test. (Thanks to a certain friend, he taught the landlord to use the temperature gun correctly.)
The temperature of the screen under the full load of the CPU also rises. Because of the glass, the temperature gun's reading may not be accurate at this time, but it is slightly higher than the hand's sense. It is not suitable for long time hands on it. Why do you put your hand on the screen? Because the hand has to be placed on the screen when drawing with a stylus.
The landlord originally wanted to test the performance of the graphics card, but Blizzard’s Battle.net client was not able to install it. You wouldn't be able to test it if you liked it. Plus, the Elite x2 is a fanless computer. The significance of the video is much greater than the meaning of running a 3D game.
The following is a good life test and One Night Standby test (Do not care about the landlord's bulk English)
Full power screenshots (look at time), then close all programs except factory preinstalled
After 13 hours of standby, this power consumption is self-evaluation, and the landlord can feel it, and it is not enough to put it off for two or three days.
Endurance test, energy saving mode, full power status, and brightest screen (about 60% screen brightness in normal mode), open smzdm.com homepage and Weibo homepage (later discovered that these two websites do not seem to have automatic content update function), QQ Online, Potplayer plays a H264-encoded 1280×532 mkv format video loop, the CPU occupancy rate is about 15%. Suspend standby for an hour in the middle, the landlord went to eat Â
The test continues until there is a 10% warning of remaining power.
Power-saving mode, the battery life under light load exceeds 5 hours (the remaining electricity is still 10%), and it is enough to take a Beijing-Shanghai high-speed rail.
Heavy use mode, the landlord turned off the energy-saving mode, power plan - equalization, Chrome loops two Bilibili pages, the screen brightness is 70% (more than 100% in the energy-saving mode), and the CPU usage is 70%-95%. Between fluctuations, occasionally reach 100%
When it reaches 10% of the remaining power, the computer will remind and automatically switch to energy-saving mode. The landlord instantly switches to the equilibrium state and continues testing until the computer automatically shuts down . The whole machine has been running for 3 hours and 5 minutes . In addition, the computer was farther away from air-conditioning when tested under heavy use, and the highest temperature in the hottest area on the back reached 46°C.
5. Summary (Congratulations on your successful landing. The above short paragraph is also very important. It is best to take a look)
Elite x2 has been used in recent days. The functions it provides are in part compatible with the needs of the landlord, such as the hand-painting functions and the simple handling of images used in regular office applications and some professional work. Compared with the landlord's other portable office equipment: single performance, Elite x2 has a lot more than the landlord other tools; overall contrast, and his function is completely against the standard only one of the Macbook series (with windows system ) + iPad Pro (with keyboard and pen). In other words, Elite x2's strengths are highly integrated with its functionality. Therefore, for general office use, Elite x2 is competent and has advantages over traditional notebooks.
Price, the landlord 9999 yuan (JD price) configuration: M7 processor, 8G memory and 256G hard drive host plus keyboard and stylus, with 4G version of 128G iPad Pro plus keyboard and stylus close to, with New Macbook 512G hard drive The edition is also close. Of course, the true competitor of the Elite x2 is not Apple's product, but the Surface series and other brands of X86 Windows tablets. As for how to choose, it depends on your needs. Elite x2 performance, highlights and short-listed landlord Rollett are also clear, hoping to give you some reference when choosing.
Postscript (entrainment of private goods)
The strategy of the landlord to use the computer is a professional thing to do with professional tools. Professional heavy work to the desktop (see the landlord before the sun single cheap workstations), such as hand-painted or PS-like process will cooperate with the hand-painted board; business, office-related things to the Macbook to do. However, the software used by the landlord for mobile work is basically on the Mac platform. None of them are large-scale softwares that are suitable for workstations. Therefore, the landlord's matchup is still good. Before the integrated product landlord such as the HP Elite x2 really had no contact, and this time it was the comparison object that was a super product like the iPad Pro, so it was impossible to directly judge certain aspects that it was really good in its own field. Still not good, you can only list out the basic data or experience for your reference.
At the time of the landlord's announcement, he saw a Tablet product evaluation and he had already dropped the notebook into the refrigerator to measure the low temperature performance. However, he did not care about the uneven appearance and details of the appearance of the product. The landlord is not saying that the article is not good, that is, everyone's focus on product performance is not the same, this evaluation is with a subjective perspective of the landlord. Hope to help you!
the above
