IT168 evaluation when the first time to get the Dell Rubik's Cube 15 7000, this machine to small series of speakers is very good. This is not just because of its exquisite workmanship and elegant appearance, but also I5-6200U, 8GB of standard memory, 256GB SSD is also considered to be enough configuration points. There are 360-degree rotating 15.6-inch 10-point touch screen, as well as the core 360-degree multi-mode, truly a multi-purpose versatility. The following Xiao Bian will make this machine "cut open" to make a detailed explanation, let everyone look at this Dell Cube 15 7000 exactly what excels.
Appearance and design: elegant and elegant all-metal structure
Speaking of the appearance, VW has always had a good appraisal of the appearance of notebooks in Dell products. Even though the Dell Cube has spent time on the hinges, it has not slackened its appearance, saying that it exudes a noble and elegant style. The fashion temperament is not an exaggeration. Xiao Bian felt that the Dell Rubik's Cube 15 7000 confirmed one sentence: "All good things start from the value of Yan."

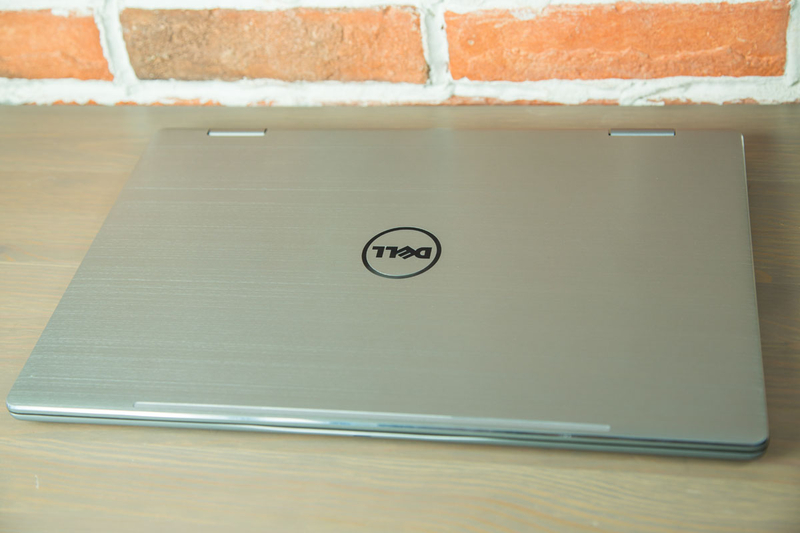

From the A side to see the Dell Rubik's Cube 15 7000 feels very good, metal body anodized aluminum wire drawing surface, Dell's classic LOGO is located in the middle of A, simple and capable. The matte metal strip below the A surface is also a very practical design, so that everyone can open the 15-inch body with one hand.
At the same time, its lightweight design makes the Dell Rubik's Cube 15 7000 only 1.75kg, and its portability is still quite good. From this picture we can also see the easy-to-open design.
Then we open the top cover and look at the B-side and C-side of the Dell Cube 15 7000. First, the B side uses a 15.6-inch LED-backlit display that supports ten touches with a resolution of 1920, 1080. The camera is located at the top of the screen. The DELL logo is located at the bottom of the screen. This is Dell's consistent design style.
The design of the C-side keyboard surface looks very comfortable, and the metal panel drawing process is also shown on this side. The keyboard is a standard size, has no keypad area design, and the keycap adopts a suspension design. The actual use feels good, and the keyway is moderately comfortable to rebound.
And support backlight adjustment, this is very intimate. In pursuit of a versatile and lightweight flipbook, achieving such a uniform backlight requires not only technology but also a little persistence.
The touchpad is large, with integrated design and responsiveness.
Beautiful low voltage I5, uncompromising high performance.
The D-face design has fewer overall elements and is relatively quiet. You can see the long mats. This can effectively protect the top cover from wear and tear in the case of a 360-degree flip. The overall metal material is also more textured and beautiful.
The vents are on the back side and the corresponding bottom of the body. Due to the addition of the metal shell, the overall heat dissipation effect is very good.
The speaker is on the bottom. Since there is a gap in the middle after the 360 ​​is turned off, it will not affect the audio experience.
Interface and flip: flexible and practical rich
Because it is a notebook that can be deformed, there are many side elements, and the switch keys and volume adjustment keys are all on the right side of the host. This is in line with the habit of using the tablet.
In addition to the interface is very rich, can expand more space and functions for the laptop, including a Type C interface, a USB2.0 and 2 USB3.0 interfaces, an HDMI1.4 interface, a headset Microphone combo interface, a media card reader can read SD \ SDHC \ SDXC three kinds of memory card files.
With respect to the shaft, the new “smile line†opening and closing design makes it feel stronger when it is flipped, and the damping control is good, and it can easily and perfectly convert the operation mode. The 360-degree flip design makes it possible to work in a variety of modes such as tablet mode, tent mode, and more with the keyboard or touch screen.
In general, the appearance and design of the Dell Rubik's Cube 15 7000 is still very good. From the appearance of the beginning to give a noble and elegant fashion sense; axis design is very reasonable, details of the processing is very sophisticated, fully reflects the Dachang products intimate. At the same time complete interface can better enhance the scalability of the laptop.
Overall performance test: comprehensive and powerful without short boards
Performance is still the soul of the product. As a notebook product that can be turned into a tablet, does the performance shrink? In the previous article we mentioned that the Dell Rubik's cube 15 7000 is equipped with a sixth-generation smart Intel Core I5-6200U processor with 8GB of memory as standard. , 256GB solid state drive, let's look at the specific performance of the aircraft.
Let's take a look at the configuration table given by Master Lu and the scores.
It can be seen that the machine's overall score of 100,000 points is still good.
CPU-Z:
Can be seen that this 6th generation Core i5 processor in terms of parameters, 2 cores and 4 threads, clocked at 2.3GHz, in general I5 has been able to smoothly run most of the current mainstream games, and the processor performance is strong.
Memory uses DDR4, standard 8G memory, and L3 cache. Here DDR4 is specifically designed to fit the sixth-generation Core processor. The Memory Latency evaluation using the AIDA64 software can show the memory subsystem performance through the evaluation of memory latency.
AIDA64 as an authoritative system detection software, it can display detailed information on every aspect of the PC. The GPGPU benchmark included with the software mainly evaluates the general computing power of the CPU and GPU.
Here we test the CPU with CINEBENCH:
CB11
CB15
CineBench R15 can support up to 256 logic cores compared to up to 16 cores in CineBench R11.5. In addition, the investigation of shaders, anti-aliasing, shadows, lights, and reflection blur was strengthened, and the detection of CPU performance was more accurate. The single-core processor tested on the CINEBENCH R15 processor was 117cb, multi-core was 293CB, and OpenGL was 43.03fps as a whole at a good level.
Fritz Chess Benchmark is often used to test the scientific computing capabilities of computers.
Single chess
Multi-core chess
Here we use PCmark7 to test the use of the whole machine:
From the test of PCMark7, the aircraft got 4948, which was close to 5000 points. This score is a reflection of all aspects of the aircraft.
Then we tested the machine with PCmark8 environment
Home
Work
Creative
PC Mark8 scoring performance aspects of performance is still very good, the average score of more than 2500 points in all aspects of the score more balanced.
The machine has a built-in core graphics HD 520, because it is a deformed product so graphics processing is not equipped with a discrete graphics card, Xiaobian think that this video card as long as not seeking high graphics performance game enthusiasts, playing some mainstream large-scale online games is enough, we look together About the machine's graphics processing performance.
Core Graphics
Here we first test the 3D performance of this machine with 3Dmark:
In addition to the test scores, 3DMark also provides a real-time graph during each test period, recording the frame rate, CPU temperature, GPU temperature, and CPU power consumption. After testing Sky Diver got 3804 points, the aircraft more than enough for daily games.
Then we tested the graphics performance of this machine with 3DMark11.
The score of 3D Mark 11 can still be very objective to evaluate the performance level of the graphics card. And to test the 3D performance of the machine from different grades. The P score of this aircraft is 1658.
Here the Dell Rubik's Cube 15 7000 has a 256G solid-state hard drive, which, although it can't match the mechanical hard disk capacity, can greatly increase the use rate of solid-state hard disks. From the test data point of view, its performance is also quite good, we take a look at the machine's hard disk performance.
After several tests, it can be seen that the hard drive performance of the aircraft is very mainstream. Running points scored 4767 points, the most reported speed close to 400MB/S.
　　 Heat dissipation and battery life: large screen does not consume electricity to help heat dissipation
Although in the previous article we showed the cooling vents of Dell's Rubik's Cube 15 7000, how does the thermal performance of a multi-form laptop behave? Is it because the deformation will affect the cooling function? Let's take a look now:
Before baking machine
After baking machine
Here we use the roasted chicken test conducted by the Furmark copying machine software. Furmark will run the two large heating components CPU and video card. It can be said that the body is already the limit output state. In order to let everyone see the heat dissipation of the tester more intuitively, we also used the FLUKE infrared thermal imager to let everyone see the temperature rise of each location more intuitively.
Positive temperature
Back temperature
After demo testing, the performance of Dell's Rubik's Cube 157000 is still good. The maximum temperature of the front side of the unit is about 55°C, and the temperature is about 34°C in the right half of the body. The maximum temperature on the back is about 59°C and the low temperature region is 36°C. It can be seen that the high temperature area of ​​the aircraft is relatively concentrated in the vicinity of the heat dissipation channel and the heat dissipation port, and the remaining parts are generally kept at normal temperature, and the overall evaluation can be given. Generally, the full load will not be reached when the user uses it, and it is difficult to reach this temperature in daily use situations.
From the point of view of endurance, it is definitely a good result to be close to 4 and a half hours. It is very suitable for carrying out. Of course, it needs to be based on the specific use situation.
Evaluation summary :
From the Dell Cube 15 7000, we can see that the two-in-one notebook has been very well developed. Dell has always given us a good first impression from the appearance, and performance and functional excellence have added more points for this machine. The convenient flip design, the all-metal structure and good life have once again expanded its scope of use. At the same time, Almighty is also more outstanding.
Whether it is holding this democrat 157,000 appeared in the office, conference room, or put it in a travel backpack as you go to the beach, to the cafe; or as the main terminal SOHO, this machine will not let You are disappointed.
