I am happy to announce the release of our newest regulators, the D36V28Fx family of step-down voltage regulators. These regulators support a wide input voltage range (up to 50Â V!) and can deliver up to 4Â A, making them well suited for use with power-hungry processors like the Raspberry Pi and projects involving servos or small motors.
 |

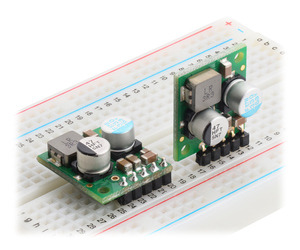

Step-Down Voltage Regulator D36V28Fx, assembled on breadboard. |
|---|
 |

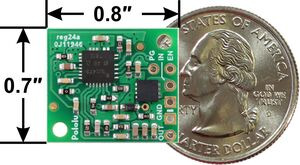

Step-Down Voltage Regulator D36V28Fx, bottom view with dimensions. |
|---|
The family consists of six fixed output voltage versions between 3.3Â V and 12Â V:
- D36V28F3: Fixed 3.3V output
- D36V28F5: Fixed 5V output
- D36V28F6: Fixed 6V output
- D36V28F7: Fixed 7.5V output
- D36V28F9: Fixed 9V output
- D36V28F12: Fixed 12V output
And since we make these ourselves here in Las Vegas, we can also quickly make versions with custom output voltages; please contact us us for more information.
Comparison to the D24V22Fx step-down regulator family
|
|
The D36V28Fx family now becomes our recommended alternative to the slightly smaller D24V22Fx if you need a little more power or operation above 36Â V:
 |

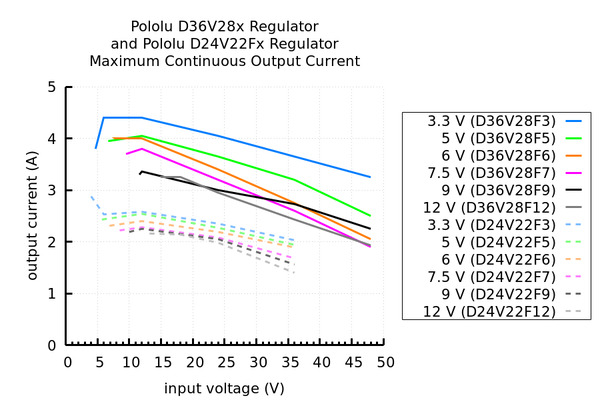

Comparison of the maximum continuous current of Step-Down Voltage Regulators D36V28Fx and D24V22Fx. |
|---|
The D24V22Fx still outperforms the D36V28Fx when it comes to dropout voltage and quiescent current:
 |

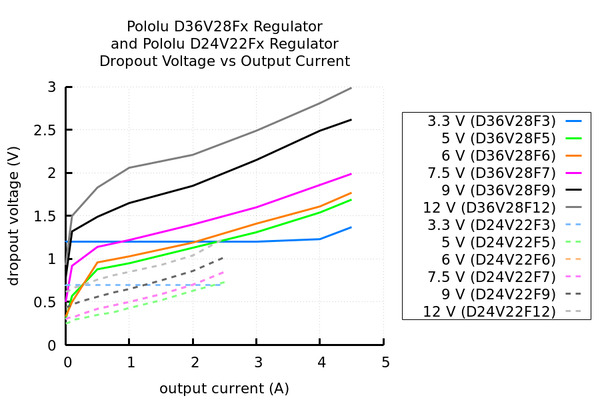

Comparison of the dropout voltage of Step-Down Voltage Regulators D36V28Fx and D24V22Fx. |
|---|
 |

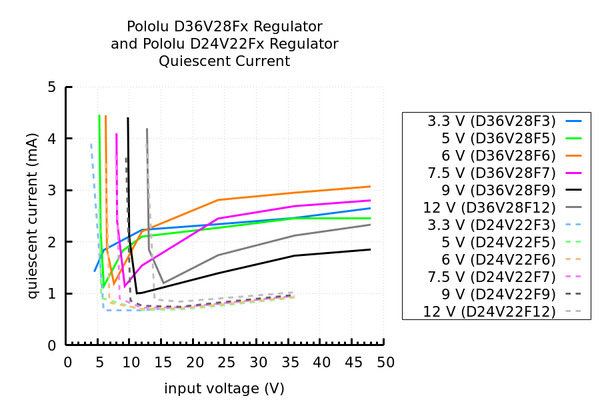

Comparison of the quiescent current of Step-Down Voltage Regulators D36V28Fx and D24V22Fx. |
|---|
Introductory special
As usual, we are offering an extra introductory special discount on these new regulators, to help share in our celebration of releasing a new product. The first hundred customers to use coupon code D36V28XINTRO can get up to three units for just $7.77 each!
Related products
|
3.3V, 3.6A Step-Down Voltage Regulator D36V28F3 |
|
5V, 3.2A Step-Down Voltage Regulator D36V28F5 |
|
6V, 2.7A Step-Down Voltage Regulator D36V28F6 |
|
7.5V, 2.6A Step-Down Voltage Regulator D36V28F7 |
|
9V, 2.6A Step-Down Voltage Regulator D36V28F9 |
|
12V, 2.4A Step-Down Voltage Regulator D36V28F12 |
-
